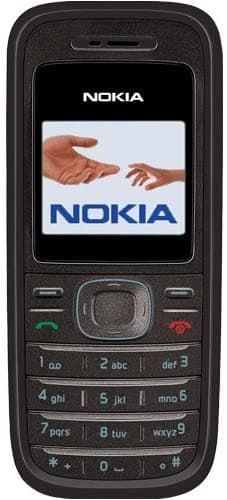

Nokia 1208 Colour Display With Arduino

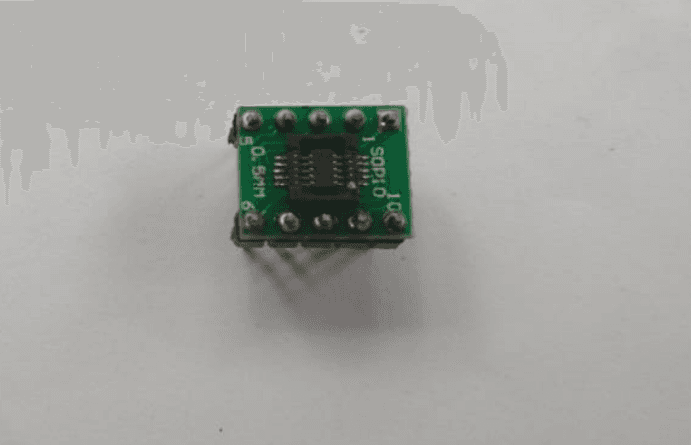

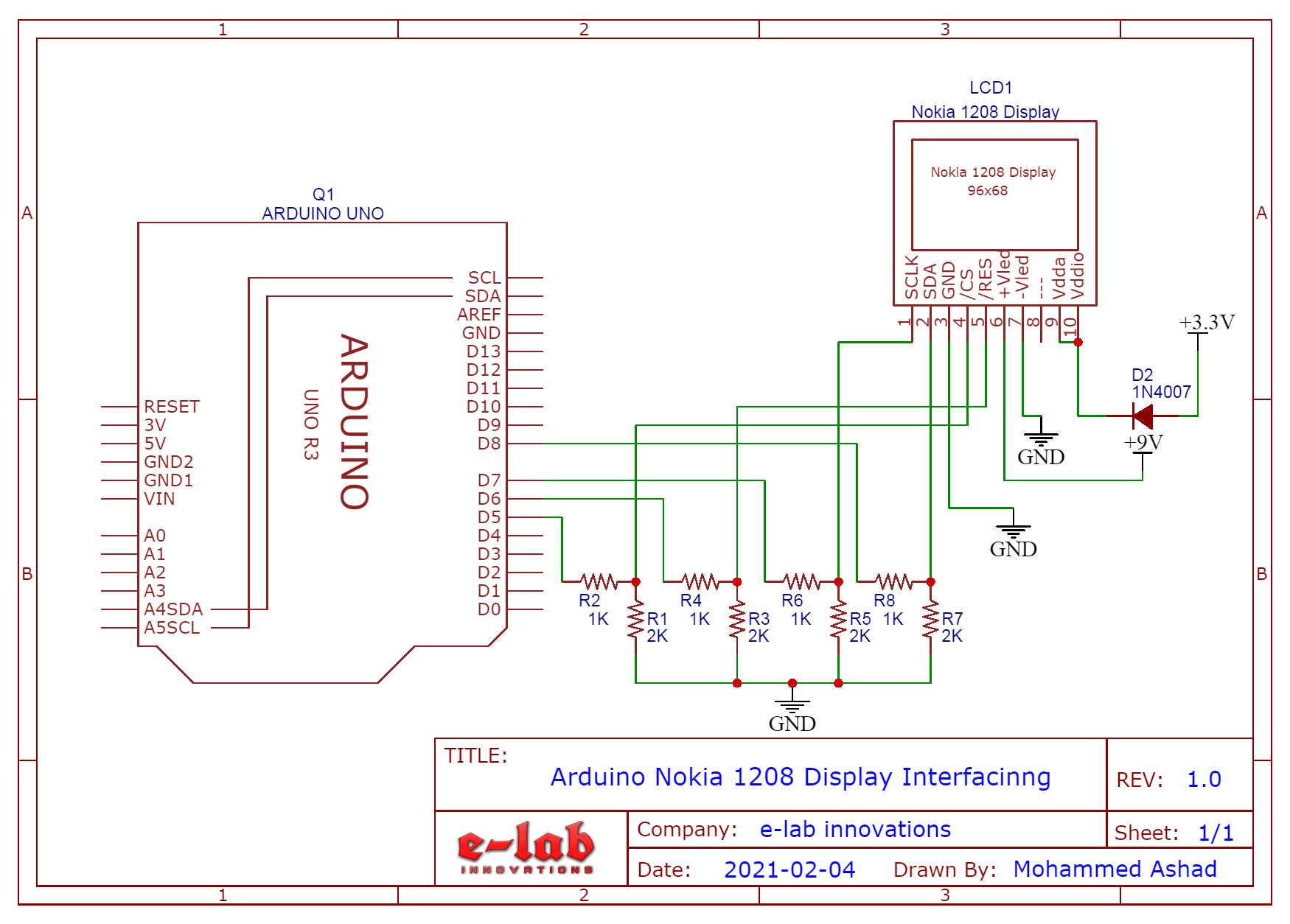

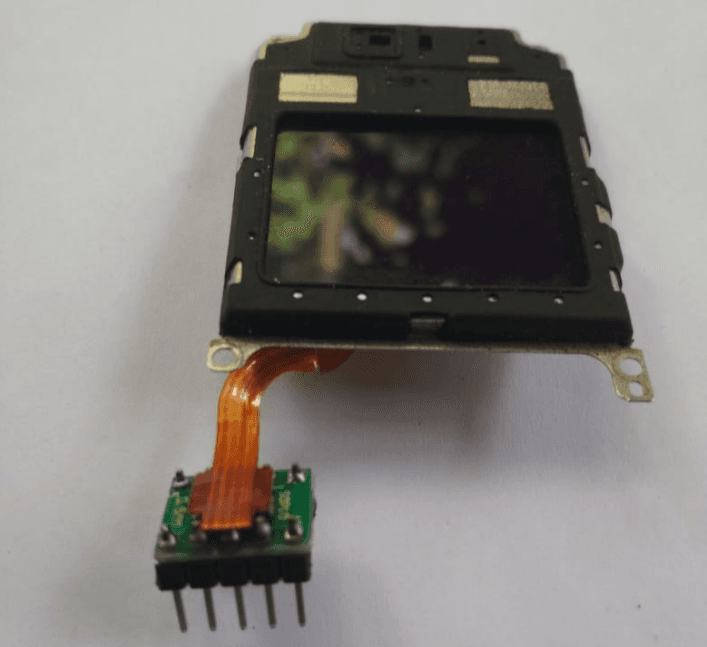

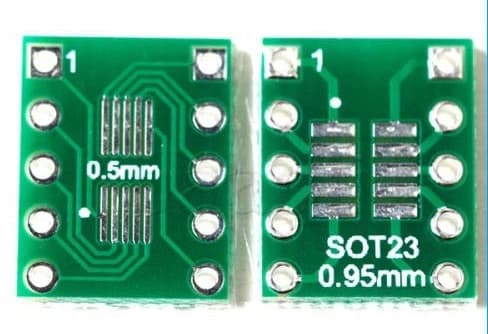

1 1: SCLK
2 2: SDA                                        1  _+--+_ 10
3 3: GND                                        2  _+--+_  9
4 4: /CS                                        3  _+--+_  8
5 5: /RES                                       4  _+--+_  7
6 6: +Vled                                      5  _+--+_  6
7 7: -Vled                        +-----------------+--+---+
8 8: ------                       |+----------------------+|
9 9: Vdda +2.8v (2.4v - 3.3V)     ||      Nokia 1600      ||
1010: Vddio +1.8v (1.65v - 3.0v)   ||         LCD          ||
11                                 ||       (98x70)        ||
12                                 ||    visible 96x68     ||
13                                 ||                      ||
14                                 |+----------------------+|
15                                 +------------------------+

1#include <Adafruit_GFX.h>    // Core graphics library
2#include <ST7628.h> // Hardware-specific library
3
4#define TFT_CS     5
5#define TFT_RST    6 // you can also connect this to the Arduino reset, in which case, set this #define pin to 0!
6#define TFT_SCLK   7 // set these to be whatever pins you like!
7#define TFT_MOSI   8 // set these to be whatever pins you like!
8ST7628 tft = ST7628(TFT_CS, TFT_MOSI, TFT_SCLK, TFT_RST);
9
10void setup() {
11  tft.init();   // initialize a ST7628 chip
12  tft.fillScreen(ST7628_BLACK);
13  tft.drawRGBBitmap(0,0, cblossomCBM, 64, 64);
14  delay(3000);
15  tft.fillScreen(ST7628_BLACK);
16
17  tft.setCursor(0, 60);
18  tft.setTextColor(ST7628_BLUE);
19  tft.setTextWrap(true);
20  tft.print("Hello World!");
21}
22
23void loop() {
24}
